Machined Ground AgW CuW Silver Tungsten Alloy For HV Equipment

AgW Tungsten Copper Alloy Silver Tungsten Alloy Customized Parts For HV Equipment

Description:

1.Silver tungsten alloys, also known as silver tungsten carbides, are used in industrial and domestic circuit breaker applications where good weld and erosion resistance is important.

2.The higher silver grades have higher conductivity, and the higher tungsten grades have greater erosion and weld resistance.

3.High contact pressures are required to ensure effective operation if used for frequent high current switching, and mixed oxides of silver tungsten can be formed to give high contact resistance.

4.Silver tungsten alloy has proven to be an excellent material because of its ability to resist contact "sticking" or welding and also because of its resistance to oxidation.

5.We produces AgWC materials ranging from 35% silver and 65% tungsten carbide to 60% silver and 40% tungsten carbide.

6.In some instances, it is advantageous to have a combination of tungsten and tungsten carbide mixed with silver.

Application of Silver Tungsten:

Silver tungsten alloys contain between 15-70% silver.

They are mainly used for electrical contacts—generally heavy-duty devices subject to high current,
such as moving contact for circuit-breakers between 100 and 800 A, earth leakage breakers, moving contact for air circuit breaker between 1000 and 10000 A, thermostats, miniature circuit breakers, arcing contact for large size contactors, moulded-case circuit breakers and heavy-load AC/DC contactors, etc.

Performance of Silver Tungsten Alloy:



Technical Parameters of Silver Tungsten Carbide:

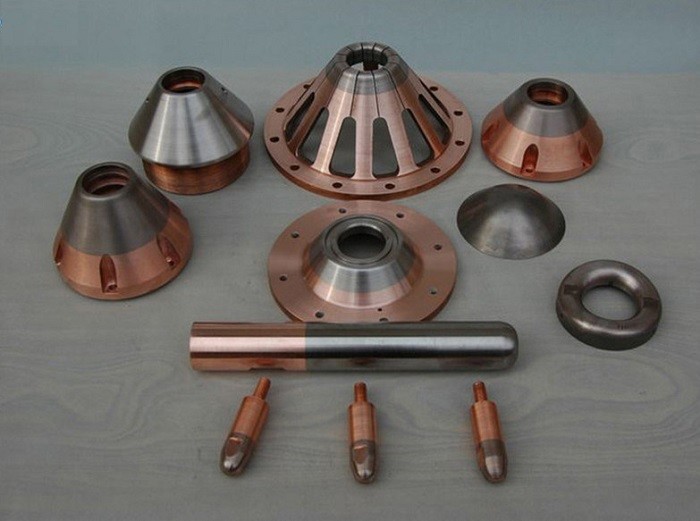

Picture show:


HV Equipment Silver Tungsten Alloy

AgW CuW Silver Tungsten Alloy

Machined Ground AgW tungsten alloys
