Seamless TZM Alloy Tubes Molybdenum Alloy Tubes Hollow Bars for Vacuum Furnace
TZM Molybdenum Alloy costs approximately 25% more than pure molybdenum and costs only about 5-10% more to machine. For high strength applications such as rocket nozzles, furnace structural components, and forging dies, it can be well worth the cost differential.
TZM alloy is available in tubes form in basically the same size range as pure molybdenum.
Brief Features of TZM Alloy Tubes:
Density:10.16 g/cc at 20C
Composition:Ti: 0.4-0.55%, Zr: 0.06-0.08%, Mo: 99.2% to 99.5%, C: 0.01-0.04%
Recrystallization Temperature: 1425 to 1595C
Stress-Relief Temperature: 1 hour at 1095 to 1260C
Liquidus Temperature: 2620C
TZM Alloy Tubes Applications:
used in components of electron tube,
glass industry,
as heaters of high-temperature furnaces,
as thermocouple retainers,
as the contact materials in silicon controlled rectifier diodes,
transistors and thyristors.
as mounting material for power semiconductor devices.
as heat sink bases etc
Dimensions of TZM Alloy Tubes:
| | Density | Outer Diameters | Length | Wall Thickness |
| Capillary Molybdenum Tube/Pipe | ≥10.2g/cm3 | 0.2~5.0mm | 500mm Max | 0.1mm Min |
| Forged Molybdenum Tube/Pipe | ≥10.2g/cm3 | 8-150mm | ≤1500mm | ≥1.0mm |
| Sintered Molybdenum Tube/Pipe | ≥10.2g/cm3 | 100-500mm | ≤1500mm | ≥5.0mm
|
Mechenical Properties of TZM Alloy Tubes
| Mechenical Properties | Elongation /% | Modulus of elasticity /GPa | Yield Strength /MPa | Tensile Strength /MPa | Fracture toughness /(MP·m1/2) |
| Data | <20 | 320 | 560~1150 | 685 | 5.8~29.6 |
High Temperature Tensile Strength and Elongation of TZM Alloy Tubes
| Temperature /℃ | Properties |
| Tensile Strength /MPa | Elongation /% |
| RT | 1140 ~1210 | 7.5~13.0 |
| 1000 | 700 ~720 | 5.2 |
| 1200 | 320 ~360 | 9.0 |
| 1300 | 190 ~210 | 11.5 ~13.5 |
| 1400 | 140 ~170 | 11.0 ~16.0 |

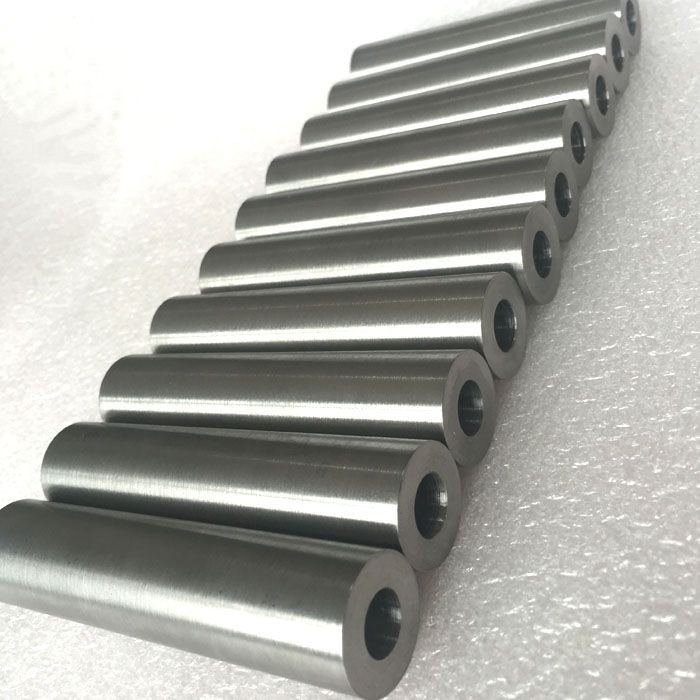

Picture show:
