High Purity Mo1 Molybdenum Wire Moly Filaments For Lamp Diameter 0.01mm to 0.08mm
Molybdenum wire is generally applied in lamp industry, such as mandrel, support wire, lead-in wire, etc.. Because of it's excellent high temperature performance, pure molybdenum wire is also used as heating components, heating material in furnace, wire-cutting, spraying wire, glass to metal seals, printer pins,etc.
Using for all kinds of grinding tool steel, alloy steel,carbide , magnetic material,etc. wire - cutting.
Features of Molybdenum Wire Filaments:
1. Grade: Mo1,Mo2,TZM,MOLa,WMo
2. Purity :> =99.96%
3. Characteristic:
Melting Point: 2610 °C
Boiling Point: 5560 °C
Density: 10.2g/cm3
High quality, workability
4. Certificate: ISO9001:2008
5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion..
Advantages of Pure Molybdenum Wires:
• High melting point, Low density and Thermal coefficients
• Good thermal conductivity properties and Resistance of high-temperature
• High tensile strength and Low elongation
• Good stability and High precision of cutting
• High speed and Long stable time of processing
• Long lifetime and Non-poisonous
Application of Black Molybdenum Wires:
• Electric light source, Electrode
• Heating elements, High-temperature components
• Wire-electrode cutting
• Spraying for auto parts
Tolerances of Molybdenum Wires:
| Designation | Condition | diameter(mm) | Weight of 200mm long wire (mg) | Tolerance of 200mm long wire (%) | Tolerance of diameter(%) |
| Class I | Class II | Class I | Class II |
| Mo1Mo2Mo361 | Black wire | 0.02≤d≤0.03 | 0.65~1.47 | ±2.5 | ±3 | — | — |
| 0.03<d≤0.04 | >1.47~2.61 | ±2.0 | ±3 | — | — |
| 0.04<d≤0.1 | >2.61~16.33 | ±1.5 | ±3 | — | — |
Testing Report of Molybdenum:
| Test Report (MO≥ 99.95%) |
| Si<0.002 | K | S |
| Al<0.0006 | Na | C |
| Fe<0.004 | Ca<0.0015 | O < 0.008 |
| Cu | Pb<0.0003 | N < 0.002 |
| Mg<0.0007 | Bi<0.0003 | |
| Ni<0.002 | Sn<0.0002 | |
| Mn | Sb<0.0005 | |
| P<0.001 | Cd<0.0003 | |

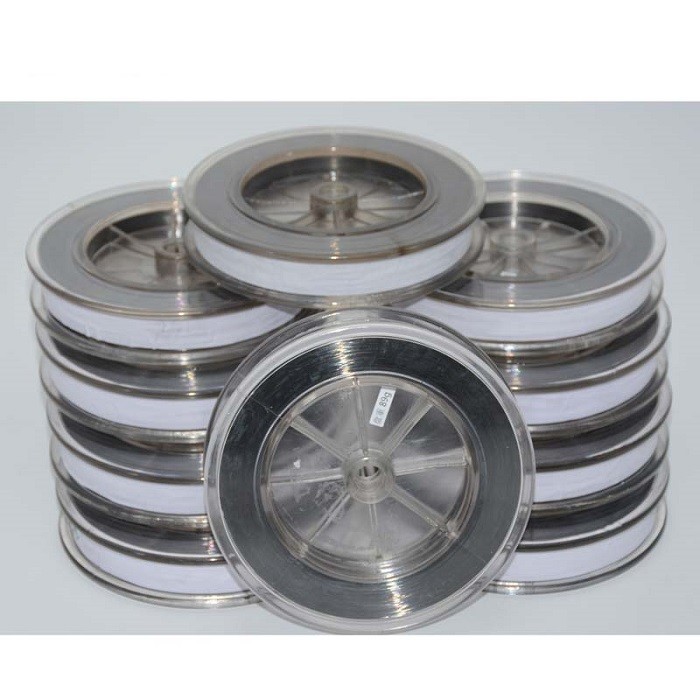

Products Show:
